ASP30 Steel Pierce Die Insert for Refrigerator Coil Fin Die Tooling
Product Specifications
| Attribute |
Value |
| Product Name |
Pierce Punch and Die Insert For 7mm 9.53mm Fin Die |
| Material |
HAP40 or ASP30 |
| Processing |
Precision CNC Lathe Turning |
| Heat Treatment |
HRC 64°-66° |
| Accuracy |
0.001 |
| Surface Finish |
Ra 0.4 |
| Surface Treatment |
Burnishing |
| Service |
OEM or ODM |
Product Description
The Pierce Die Insert is a precision-engineered tooling component designed for punching, piercing, and blanking operations in metal stamping and die-cutting applications. Manufactured from high-grade tool steels or carbide, it ensures durability, accuracy, and extended service life in high-volume production environments.
We provide customized services for various high-speed fin press lines, including:
- Fin die punches and pierce punches
- Pierce die inserts and complete punch & die sets
- Slitting blades and edge trim components
- Rippled slitting blades and cut-off blade assemblies
- Fin die punching bushings and flanging components
- Lancer punches and louver punch sets
- All fin die accessories and spare parts
Available Sizes
5mm, 1/4", 7mm, 5/16", 8.9mm, 3/8", 12.7mm, 1/2", 14.5mm, 5/8", or customized sizes available.

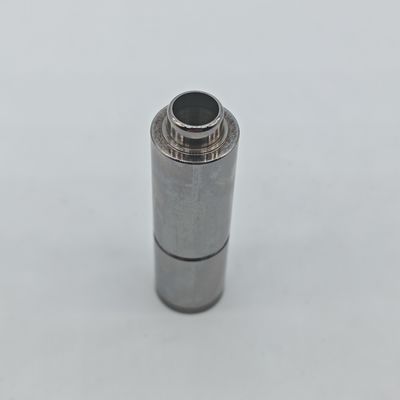

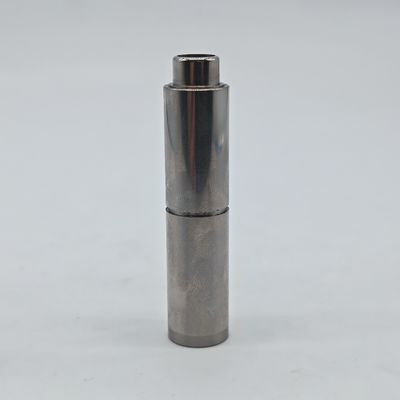

Product Images
Application Industry
Manufacturing Capabilities
Guangzhou Runshi Mold Co., Ltd. specializes in precision machinery manufacturing, providing:
- Equipment molds and vulnerable parts for air conditioning and heat exchanger manufacturing
- Cutting tools and precision components
- Ceramic and tungsten steel parts for various industries including new energy, medical devices, aerospace, and automotive
Frequently Asked Questions
Q: What is the name of this product?
A: Fin die pierce Die Insert, Fin Die Accessories, Fin die spare parts
Q: Are you a trading company or manufacturer?
A: We are manufacturer.
Q: What industry is the fin die pierce Die Insert mainly used for?
A: It is an important die accessory for the production of fins in the air conditioning and refrigeration industry, heat exchangers, surface coolers, evaporators, and condensers.
Q: How to manufacture after the order is confirmed?
A: We need samples or drawings. Our production engineers with over 10 years of experience know how to control tolerances and precision.
Q: How long is your delivery time?
A: 5-10 working days if in stock, or 25-30 working days for custom orders, depending on quantity.
Q: What are your payment terms?
A: ≤$10,000 USD: 100% in advance. >$10,000 USD: 50% T/T in advance, balance before shipment.
